Wally Tango superyacht RC at 1:25 scale – full scratch build log!

This project aims to create a 1:25 Wally 100 Tango model: LOA=1219mm, beam=288mm

After 13 months, the result:

Huge thanks to Patrick (from the CNL) for the pictures.
If you happen to be in Paris a Sunday morning, come say Hello at the Jardin du Luxembourg ‘s pond.

DESIGN

Covid crisis and minimal ressources: a 28″ screen, openSCAD, some paper, two block of styrofoam, 3mm plywood… and a lot of “week-end” time.

Choices made:

  • composite hull because we are in the 21th century … and to keep the weight low
  • fiberglass Vs carbon to be more easily repairable
  • one hull is needed, I go for the lost (not really) mold method – The plug is used to build the final part directly. It is lower cost, faster and avoid me to store the mold after… the time saved on sanding/finetuning the plug will be use on the final part
full scale sail plan
2020, April 4-12: my openscad design: Hull / waterlines
24-Deg angle: waterlines look correct. Single rudder ok, still immersed, everything seems ok.
Nice
45-Deg angle: waterlines look. hum… I have a doubt about the single rudder here.
We will see;-) I am planning to make it larger than a real scaled one.
And heeled now, buttock lines.

Run with openscad.

The first parameter allows to choose the display mode.

i.e: processing=4 is generating one bulkhead, identified by the other parameter BH_id (range 0 .. 11). The bulkheads are separated by n*XPS_thickness (n is defined in BH_xpsnb array). This is the mechanism which allowed me to copy the bulkheads and prepare the styrofoam sandwich.

You can also generate the STL files, print them, lasercut them, ..

SHAPING

2020, April 18-19: Covid-19 == no 3d printer here. Old school but efficient method.
Calibrate the screen size and copy over each bulkhead with paper.
Mirror the imprint on the plywood and cut with a manual scroll saw.
2020, April 25-26:
40mm styrofoam cuts to reach the 120mm spacing stated between bulkheads.
3 blocks of styrofoam and one bulkhead glued together and fixed on the support.
(The bow has a lower number of styrofoam layers (two and one on the last bulkhead)
reduced result before heavy hand sanding
After sanding

HULL

2020, May 2-3:
Nothing much to do, still waiting for the delivery of fiberglass cloth. packing tape and mold release wax applied.

2020, May 6:
Hull lost mold fiberglassing.

  • 2 layers of 160gr/m2 sergé fiberglass cloth
  • Slow epoxy resin
  • Epoxy black RAL 9005 pigments
The second layer of fiberglass is set at a 45 degrees angle from the first.
The color is useful during fiberglass impregnation, it helps to make it even. It creates also a base for the hull final color, perhaps allowing less paint job.

2020, May 9:
lot of sanding (reducing a bit the previous fiberglass layers), epoxy putty to level properly the surface, sanding, the structural finishing double 160gr/m2 fiberglass layers, ultra light sanding, epoxy putty and final sanding!

2020, May 10:
Here’s come my 1200mm wally tango hull ! 😎
Resin/Pigment/Putty/fiberglass total cost: ~50 Euros.
Weight of the untrimmed hull: 720gr.
I still have to trim a big part to the deck limit. I will probably land around ~600/650gr which is not bad at all considering it is a 1200m stiff hull with at least 2 layers of 160gr fiberglass. It should be able to take some rough hits.

Trimmed! 610gr

HULL BORDER

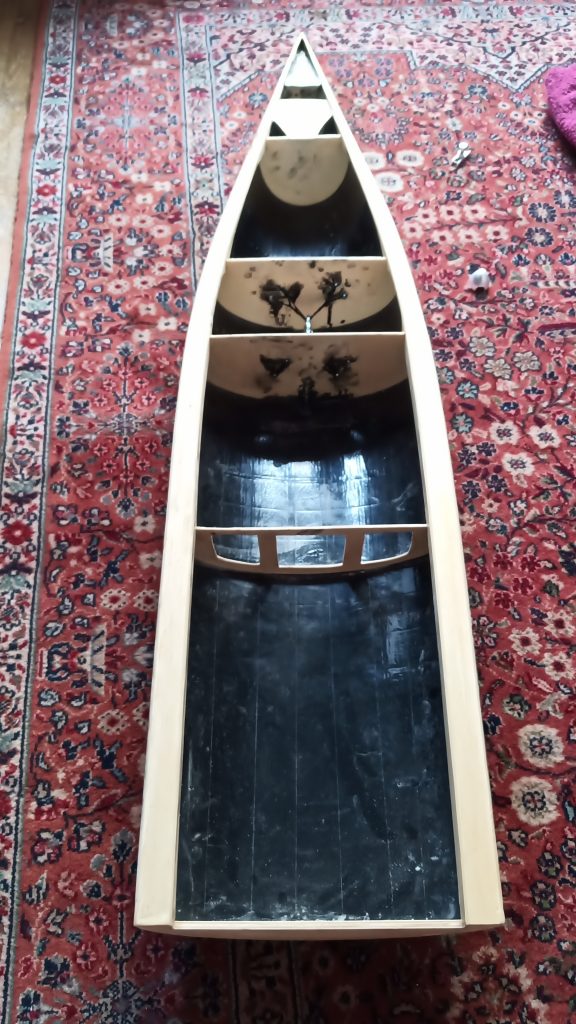

Borders: Light bulkheads with 3mm plywood and border are shaped with 3mm balsa. It aims to provide a light structure easy to finetune. I will see if an added G4 primer will provide enough strength or I will simply fiberglass the wood…

3mm Balsa custom insertion

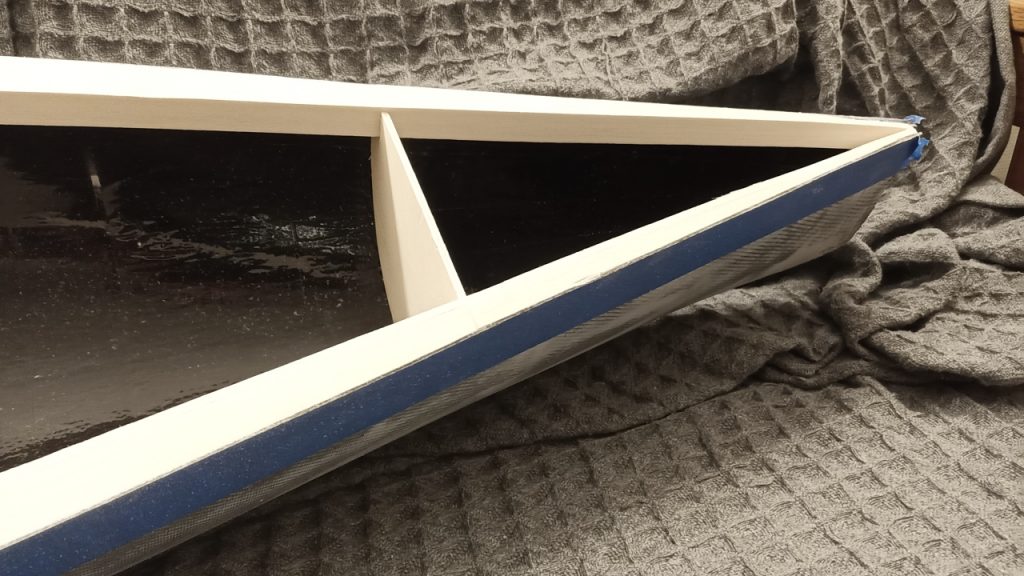

Trimming and sanding

Second layer of 3mm balsa on top and bevel

RUDDER AND FIN

The rudder is 4 layers of 160gr/m2 fiberglass encapsulated between plywood and shaped. The middle fiberglass is for stiffness and leading/trailing edge hardness. 19cm, 30gr

The fin is from center: 4 layers of 160gr/m2 fiberglass, balsa 3mm, 2 layers of 160gr/m2 fiberglass covering and fixing the middle shaped carbon tube of 8mm. The middle fiberglass is a bit for stiffness and mainly for leading/trailing edge hardness. The carbon tube has two purposes: stiffness and holding top/down brass knurl nuts.
40cm, 7.5mm thickness, 87gr, bending 17mm with 1600gr bulb.

Keel box is built on the fin: unidirectional carbon 200gr and multiple layers of fiberglass.

Keel box settled in the hull, rock solid and light weight: epoxy glue against the hull, high strength unidirectional carbon 200gr stratified web over the box head and bulkheads, one layer of fiberglass 160gr over the seal (box / hull). I used black pigment in my resin to ensure visual control of the epoxy resin covering, it looks a bit messy but still very useful.

The front is prepared and reinforced to hold the jib stay and possibly a classic headsail like the real 1:1 tango… but I will probably finish with a classic RC jib boom.

Magnetic rudder holder
Magnetic rudder holder
Rudder holder final assembly
Rudder holder final assembly
Tango hull profile
Tango hull profile
Rudder support with unilateral carbon fiber
Rudder support with unilateral carbon fiber

SERVO PLATE

Servo plate prepared with a sandwich fiberglass160+plywood+fiberglass160, good stiffness, acceptable weight: ~30gr. I added a protected hatch for the battery. Everything is “low-level” as possible: the more weight under the waterline, the better.
I use a 2.8kg/cm servo in my IOM without any issue, Emax ES3552, the same I use in some gliders aileron. It weights 12gr, metal geared and is far enough for the job (quid of the >10Kg/cm servos for rudders? we hardly use 6kg/cm servos in f3f wings)
For the winch, I took a W6114-6T. I am still waiting to receive some GT2 pulley to finish. Like my IOM, I am going to use a linear closed GT2 track to pull the sails. Try it!

  • working great without any glitch risk with stuck cable
  • no direct traction on the servo axis: best durability, can be use with smaller winch
  • added weight is really small ~20g compared to the pros
servo plate - plywood fiberglass sandwich
servo plate – plywood fiberglass sandwich
Final servo plate with inserted bolts
Final servo plate with inserted bolts

MAST / BOOM

Mast and boom vang. More work than expected…
I wanted a seamless gooseneck, the rotation is integrated in the mast (12mm diameter carbon tube) on ball bearings around a 3mm stainless steel rod (length: 125mm). I am planning to trim the tack plate at the end… just to be sure if I need to upper or lower the boom.
The boom vang is also full carbon with stainless steel inserts/hooks/screws to look like the real one.

boom
boom – balsa core stripped between fiberglass
carbon boom vang
carbon boom vang – trying to look like the real one
Mast rotational part with carbon tube and ball bearings
Mast rotational part with carbon tube and ball bearings
Final mast assembly
Final mast assembly
Crosstrees
Crosstrees – 3×2 carbon tube + abs 3d printed cover
Carbon rod
Mainsheet

PULLEY BELT

I bought for 10 Euros some GT2 pulleys (a 60Teeth and some 20T w/o teeths) and a rubber/figerglass 5 meters belt.

GT2 pulley 60T refactored and trimmed, added a ball bearing upper which will help to balance pulley force outside the servo chassis.

GT2 pulley 60T refactored and trimmed
GT2 pulley 60T refactored and trimmed
GT2 Pulley on sail winch servo
GT2 Pulley on sail winch servo

Pulley holder designed for my use: https://www.thingiverse.com/thing:4684485

Pulley holder
Belt track
Belt track
Belt hook

DECK FITTING

Window - machined 3mm tainted Acrylic glass to fit opening in a single piece
Window – machined 3mm tainted Acrylic glass to fit opening in a single piece
windows fixed (epoxy)
windows fixed (epoxy)

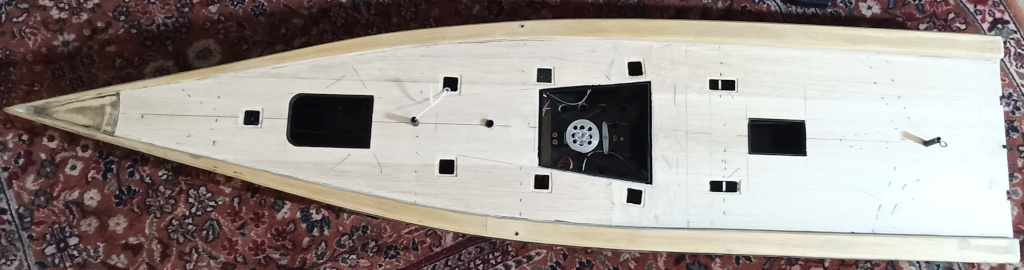

Tango deck prepared
Tango deck prepared – 3mm balsa sheet assembled
Deck step with hatch
Deck step with hatch
Deck curve
Deck curve

Openscad designed hatch

3d printed hatch - curved
3d printed hatch – curved
Prepared for closing
Prepared – with placeholder strings.
I added a white window frame in hope to enhance the light effect through the tainted acrylic.
Strings are guided by carbon tube sections ended with fishing ceramic ring

One more G4 primer everywhere to seal wood – light sanding…

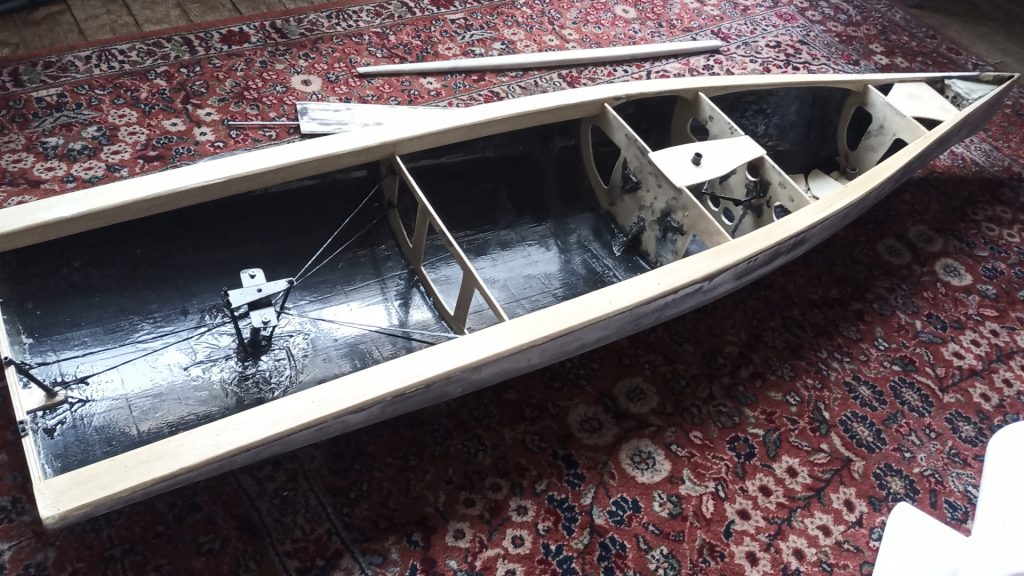

Final opened Tango.
Final opened Tango… ready for deck gluing

Finally it is clear the hatch position is a bit backward… it was mandatory to access the electronic properly… and let enough space for the keel box. I kept the proportion somewhat correct.
The windows are going to look normal (smaller) with the planking covering.

Tango deck fixed – slow epoxy with microballoon and waterproofed with epoxy putty

BULB

I prepared a new generic openSCAD module to generate bulb based on a naca (or any) profile.
Code is available here: full code package Github and presentation on Thingiverse.
And more airfoils on my Github airfoil database.

Based on different pictures and profiles informations, I selected the profile naca 66-012 and applied a flatten ellipse section.
Naca 66-012 provides a low drag in straight and level movement.
My STL files: P1 , P2
It happened to look a lot like the original.

Real bulb
Bulb with the beaver tail
bulb naca 066-018 scaled
3d printed and sanded
bulb naca 066-018 scaled
3d printed and sanded
Lead bulb
Lead bulb
bulb keel
keel & bulb (landing at 2Kg for the bulb)

HULL PAINT

Always a long, time consuming and painful process to get a good result.
One wet sanding 600, one paint layer to check surface, one sanding 400 + one wet 800… and two paint layers.

carbon black spraypaint
pur mat carbon black first – after first layer
First varnish layer
First varnish layer
Like the original:
Hull: gloss finish (need polishing)
rudder, keel, bulb, mast/boom: mat finish

DECK PLANKING

4th row...
4x1mm tilia wood, separated by 150g/m2 black paper.
The paper was previously fixed with a single pass G4 and cut in 2mm strips.
The glue is transparent high strength polyurethane.
150g black paper
To get a hole-free fixation, pressure is maintained with blue tape.
The paper excess is cut after for a glimpse of result…
Some details, black paper trimmed a bit. Unfinished
Hatch open
Hatch close
front

SAILS

Sail making with Claudio gadget.
Icarex / Ripstop 48gr/m2.
8% chord.

Sails
Turnbuckle for sail vertical tension
Some quick 3d design/print – rings holding the sail to the mast

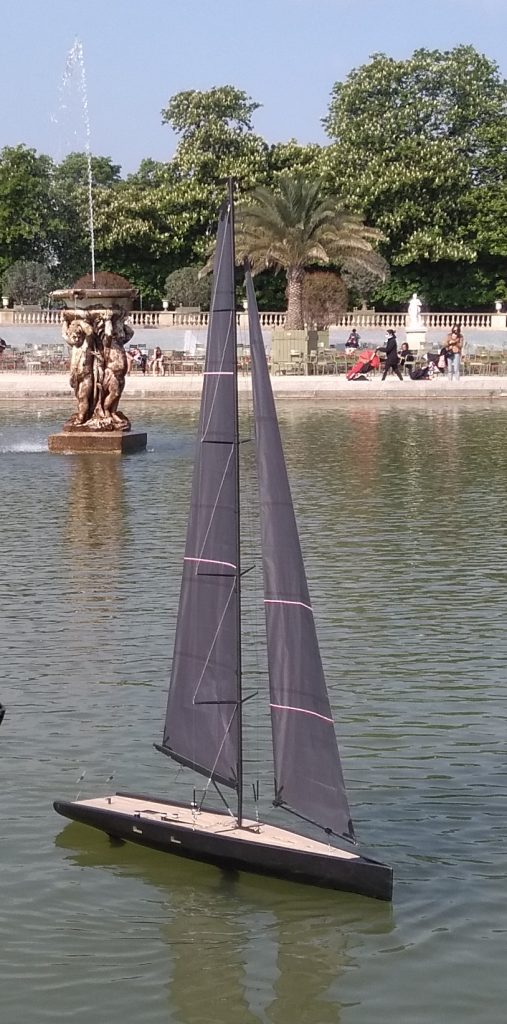

SHIP LAUNCHING

Nice speed. Well balanced. The perfect morning.
I had a great time with my friends at Jardin du Luxembourg in Paris.
Eating the waterline a bit with the 2kg bulb like anticipated. The 1.6kg bulb should be perfect as designed…. but I can not afford to increase the keel size where I am sailing.
The mast is still far from water even with a high angle of list, the next move will be to lower the boom a bit.

Wally tango rc
